 Get Wired with E-Switch

Adding wire leads to a switch just got easier!


E-Switch offers several terminal options which will enhance your production line and your bottom line. Selecting the right terminal option for your product assembly process will provide time and costs savings from:

♦ No need to second-source wire leads and assembly house.

♦ Reduce labor cost by ordering your switches pre-wired before arrival on your manufacturing floor.

♦ Decrease product assembly time with the ease of installing behind the panel.

The Anti-Vandal switch (a.k.a. Vandal-Resistant, Vandal-Proof, Tamper-Resistant or Tamper Proof) was designed to be installed in devices and equipment that is susceptible to harsh use, vandalism, theft, as well as withstand extreme temperatures and be resistant to dust and moisture. The wired options are color-coded for convenience and are compatible with a variety of connectors.

Banner_2




Terminal Options:
Anti-Vandal Series ULV

  Anti-Vandal Series   Solder Lug Terminal Option W
  Wire Leads Attached
300mm Long		 Terminal Option M
  Molded Protective Boot
with wire leads		 Terminal Option P
  Detachable Socket
with wire leads
ULV4 ULV4 Blue Dot
 ULV4_W_188x113_150dpi
 ULV4F_M_188x105_150dpi
 ULV4-2
ULV7 ULV7-Transparent
 ULV7_W_188x110_150dpi_2
 ULV7_M_188x97_150dpi
 ULV7
ULV8 ULV8 Green Ring
 ULV8_W_188x110_150dpi
 ULV8_M_.188x105_150dpijpg
 ULV8


Terminal Options:
Anti-Vandal Series PV
  Anti-Vandal Series   Solder Lug   Wire Leads Attached
  300mm long		  PVP Detachable Socket
with Solder Lug		  PVP Detachable Socket
with Wire Leads
PV3PV3 Blue Dot
PV3_DW
PV3Socket.separate
PV3_Socket
PV4 PV4 RGB SS ring transp bkgrd
 PV4 DW_SS_blue ring
 PV4socket
 PV4 PVP socket Wire copy
PV7 PV7 ring_blue
 PV7 DW
 PV7Socket.separate
 PV7 with wired socket
PV8 PV8 ring_blue
 PV8 DW_ring color blue
 NA Image not available.
PV9 PV9
 PV9_DW
 NA PV9 Socket wired
PV10 PV 10 ring color
 PV10
 NA PV10-Socket

E-Switch announces several product extensions for the anti-vandal product line. These new options eliminate in-house labor or second sourcing to add wire leads before installation, therefore reducing lead-time and cost.


Get Wired Mini_cover


Click Product Detail Page to link to specifications, 2D drawings and 3D model download for each switch series

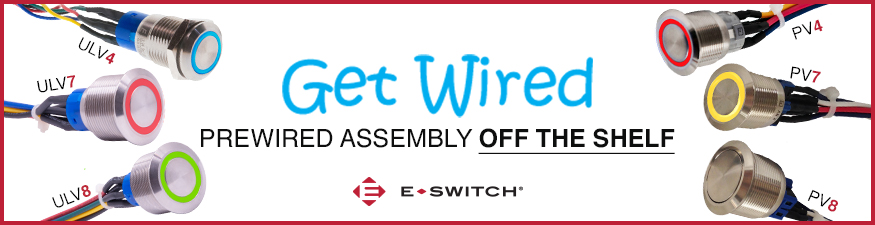

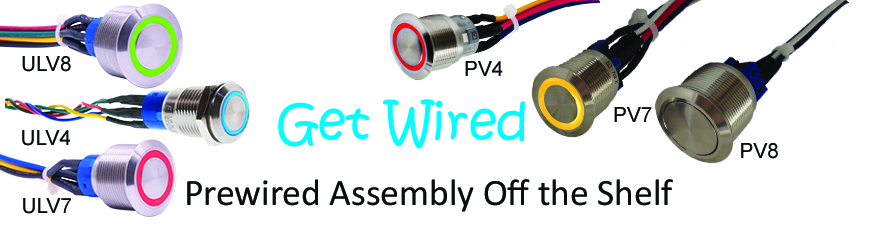

Pre-wired Assembly

ULV series and PV series - available for ULV4, ULV7, ULV8 and PV4, PV3, PV7, PV8, PV9, and PV10
  • 300mm long wire leads attached
  • Color coded wires
  • Compatible with a variety of connectors
GetWiredLandingPage_BH_2

PVP Socket Extension - 2 Options

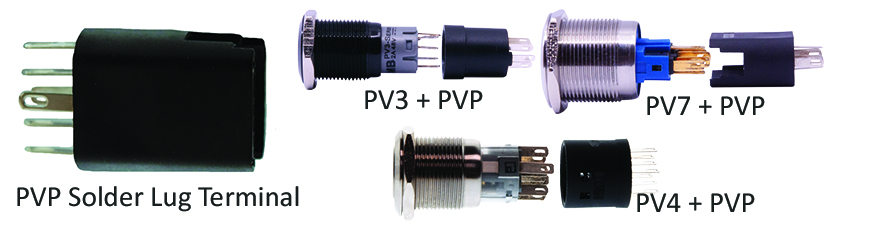

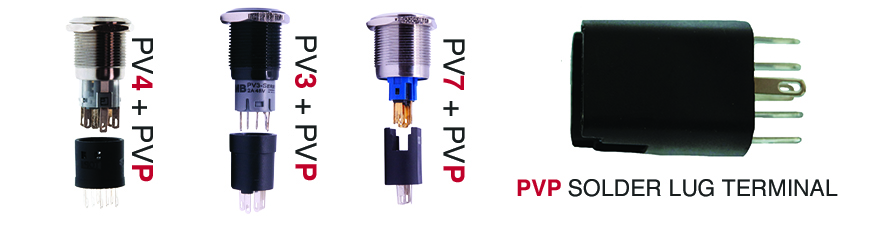

  • PVP Socket Extension with Solder Lug Terminal - Available to PV3, PV4, PV7
  • Convenient connection
Land Pg 2_PVP Solder Lug_BH

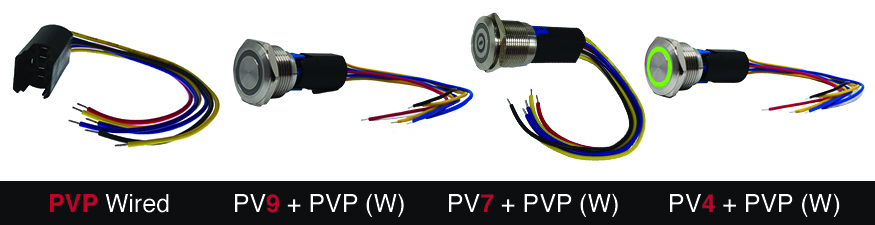

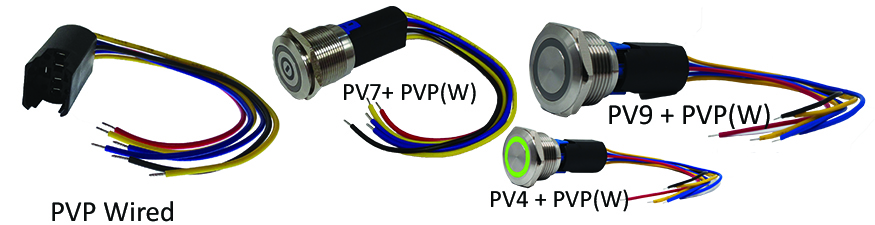

  • PVP Socket Extension with wired leads attached to socket - Available to PV3, PV4, PV7, PV8, PV9 and PV10
  • 140 mm long wire leads attached
  • color coded wires
  • compatible with a variety of connectors
Land Pg 3_Wire PVP_BH
