The New Anti-vandal Series for Limited Space Designs

SV Short Body Anti-vandal Series

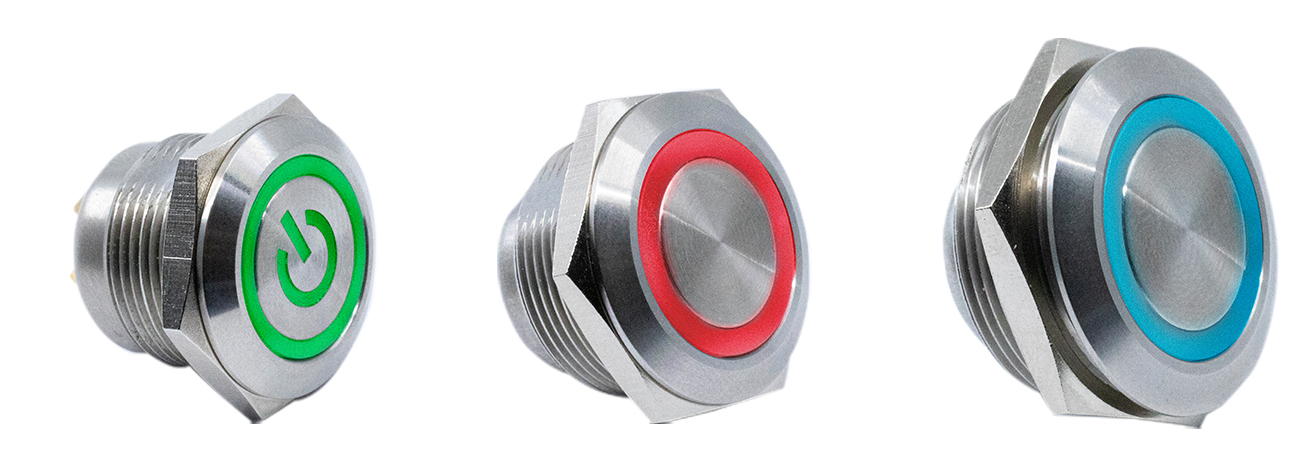

E-Switch releases the SV Series, an anti-vandal pushbutton with a compact body depth to fit designs with limited space. The SV Series is available in three panel cutout sizes: SV4 – 19mm, SV7 – 22mm, and SV8 – 25mm. The body depth of the SV4, SV7 and SV8 is 19.2mm compared to the PV Series equivalent which ranges from 34mm to 41mm in depth, depending on specific model. All SV models offer solder lug termination or soldered wire leads – 500mm long termination options.

The SV Series is rated IP67 for moisture and dust protection and SPST contact arrangement. The SV Series is available in stainless steel finish for body and actuator. All three models offer ring illumination or ring/power symbol combo on a flat actuator; both lens styles are movable with the actuator. Multiple LED color options and illumination voltage are available.

Electrical rating is 2A at 36VDC with a 200,000 cycle electrical life. The SV Series provides 1.80mm travel, actuation force of 4.5N, dielectric strength is 2,000V RMS at sea level and the operating/storage temperature range from -20°C to 70°C. This impressive new series offers panel thickness is 1mm to 6mm and mounting nut torque is 1Nm to 3Nm, making these premier pushbuttons ideal for applications with limited space.

Common applications include audio/visual equipment, elevator control pad, security devices, industrial controls, electrical housewares, public ticket dispensers and vending kiosks.

Specifications include:

  • Electrical Rating: 2A @ 36VAC
  • Electrical Life: 200,000 Cycles
  • Travel: 1.80mm
  • Moisture Protection: IP67
  • Actuation Force: 4.5 N
  • Panel Thickness: 1mm – 6mm
  • Mounting Nut Torque: 1Nm – 3Nm
  • Contact Resistance: 50mΩMax at 1A 12VDC
  • Dielectric Strength: 2,000V RMS at sea level
  • Operating/Storage Temperature: -20°C to 70°C

Download SV Series Datasheets:
